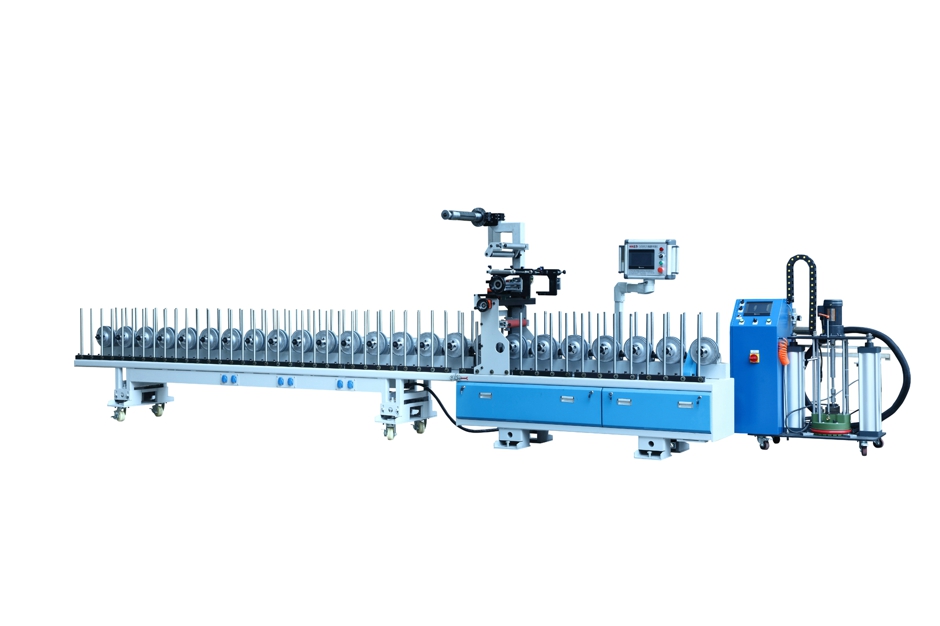

SKR-300 PUR laminating machine
main parameter：
| Technical Parameters | |
| Max.film covering width | 300mm |
| Max.processing thickness | 90mm |
| Min.processing length | 600mm |
| Conveying speed | 0-50m/min |
| Glue type | PUR hot melt glue |
| Glue sticking power | 5.5kw |
| Motibity power | 1.5kw |
| Heating power | 6kw |
| Machine weight | 2500kg |
| Temperature control range | normal temperature---180℃ |
| Control system | PLC+Touch screen |
| Heat insulation | With |
| Over-temperature alarm | With |
Remark: If any change of the specification and standards,will not be noticed.
Equipment characteristics：
PUR Hot Melt Gule Multifunction Laminating Machine is suitable for the decorative strip(WPC strip), aluminum profiles and other material's surface coating with leather, PVC and veneer.This machine is easy to operate, laminating speed fast, and no foaming. For various of angels, arc concave and convex surface, rolling groove edges and other complex shape surfaces, it can make them reach perfect laminating. Besides that, PUR glue has the performance as anti-aging, UV-resistance and so on, which is the first choice for the outdoor products factories.
