main parameter：
|
Host model |
Max capacity(kg/h) |
Traction speed(m/min) |
Main motor(kw) |
Die mould |
Pipe range(mm) |
Total power(kw) |
Cover L/W(M) |
|
SKR-SJZ65 |
250 |
0.5-15 |
37 |
一出四 |
Ø16-32 |
97 |
22/4 |
Remark: specifications and standard equipment will be subject to change without notice.
Equipment characteristics：

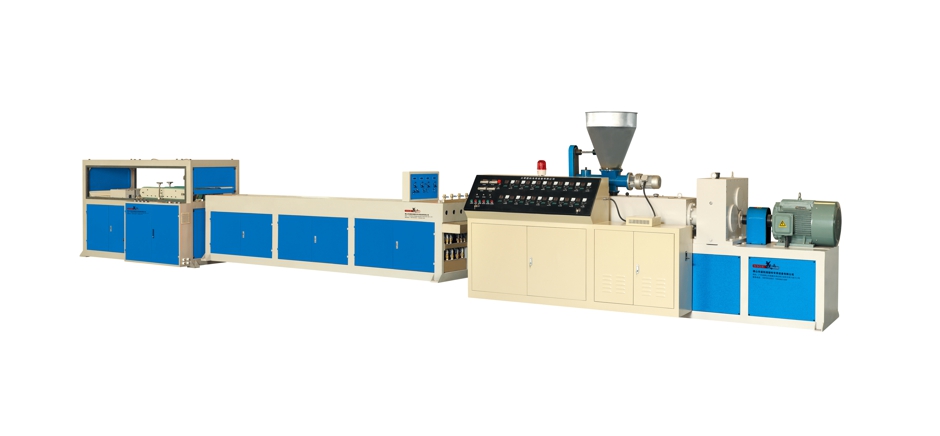

SKR 4 cavities PVC conduit pipe making machine, also called 4 outlets conduit pipes production line, on the premise of guaranteeing the quality of the product, this equipment can greatly reduce the input cost, the cost of the workshop and the input cost of production, greatly increase the output and reduce the production time.
The PVC 4 outlets pipes making production line consists of the machine as below:
1.65/132 Conical twin-screw extruder;
2. One set of four cavities die mold and sizing molds;
3. Vacuum sizing and cooling machine;
4. Automatic coding mobile rack;
5. Four-outlet traction and chipless cutting one-piece machine;
6.Four-outlet stacker
