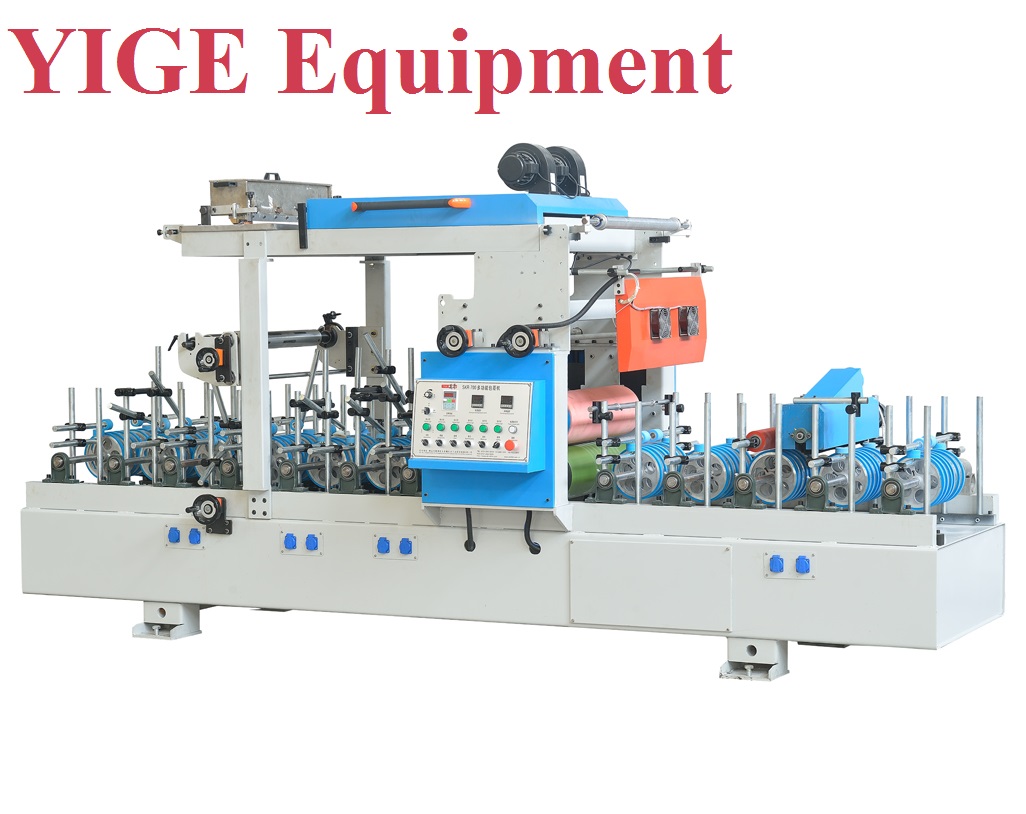

SKR-700 Multifunction laminating machine

main parameter:

Coating width range 300-1300mm
Max processing thickness 60mm
Min processing length 600mm
Conveying speed cold glue:                                   0-25m/min(Stepless)
hot glue:                                   0-50m/min(Stepless)
Glue type cold glue: Oily glue
hot glue PUR
Max Roller diameter 75mm
Heating power 6kw
Motor power 1.5kw

Remark: If any change of the specification and standards,will not be noticed.

Equipment characteristics:

SKR-700 Multifunction laminating machine with fully steel body, has high precision turbo, vortex rod drive and workpiece transmission steady.

The body can be lengthened, separate design, Stepless Frequency Speed Adjustment.

Full imported silicon conveying wheel, molding roller, wear-proof, oil-proof, heatproof, easy to remove the rest glue. Fully automatic digital control system, easy operation, can apply to different work's demand.

It is specialized for decorating wall panels, profiles, aluminum-plastic profiles and other surface coating with PVC film, melamine paper, artificial wood veneer, wood veneer etc, which can make the complex shape product’s surface to reach perfect coating. Using the high-standard glue, can coat many kinds of angle, circular, concavo convex, pressure tank and roll rims. It's widely suitable for building, furniture, table face, window, door, decorative bar and other related professional factories’ usage.
