main parameter：
| Host model |
SKR-SJZ51 |
SKR-SJZ55 |
SKR-SJZ65 |
SKR-SJZ80 |
|
Auxiliary model |
SKR-GC40/2 |
SKR-GC50/2 |
SKR-GC63/2 |
SKR-GC110/2 |
|
Pipe range(mm) |
Ø16-40 |
Ø16-50 |
Ø20-63 |
Ø75-110 |
|
Speed(m/min) |
10 |
12 |
15 |
8 |
|
Max capacity(kg/h) |
120 |
180 |
280 |
450 |
|
Total power(kw) |
65 |
80 |
90 |
120 |
|
Cover L/W(M) |
18/2.5 |
22/3 |
24/4 |
28/4 |
Remarks: specifications and standard equipment will be subject to change without notice.
Equipment characteristics：

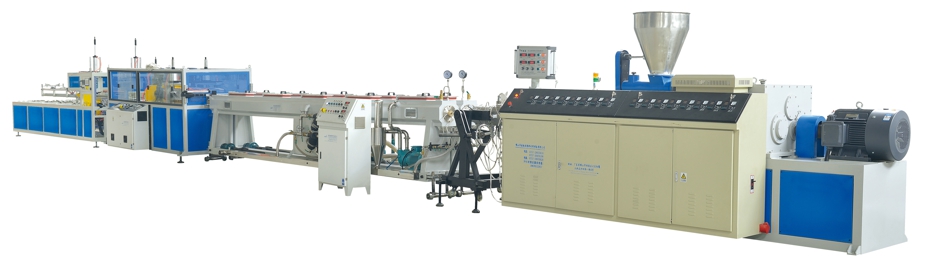

SKR Double outlet PVC pipe production line is developed advanced technology. The host SJZ-51/110 or SJZ-65/132 conical twin-screw extruder equipped with double tube single-control stainless steel spray forming table, can avoid the waste phenomenon when a tube adjusted another tube also affected. The double extruding pipe diameters can work from Φ16-Φ63, Φ75-Φ110 which can fully use the extrusion capacity to achieve the high output, even producing the small diameter pipes.
SKR series plastic pipe production line produced various kinds diameters and wall thicknesses PVC plastic pipes, because of their characteristics, are widely used in oil-gathering and transporting pipes in oilfields, chemical used heat-resistant and anti-corrosive pipes, hot & warm water supply and drainage pipes, direct buried HP-UHP power transmission pipes, electric cable conduit and other fields.
