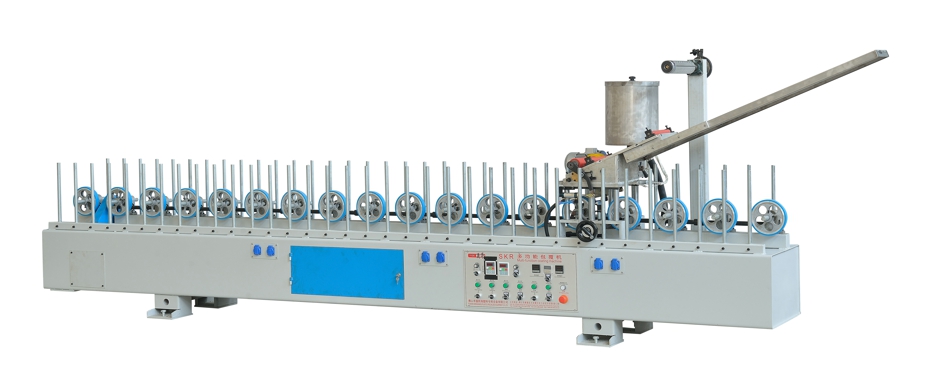

SKR-300 EVA laminating machine

main parameter:

Technical data:
Max. film coating width 300mm
Max. process thickness 90mm
Min.process length 600mm
Conveying speed 0-30m/min
Motivity power 1.5kw
Sticking power 0.4kw
Heating power 6kw
Max.roll coating material diameter 400mm
Remark: If any change of the specification and standards,will not be noticed.

Equipment characteristics:

Feature and Application:

SKR300 EVA laminating machine using hot melt glue, suitable for coating with veneer, can coat with single or rolls of veneer at the same time; it has advantages as glue spread evenly, flat and smooth surface, high coating speed, excellent precision, it is suitable for all kinds of complex shape profiles’ surface coating, and via the installation of heating device, it can also coat for the CPL(continuous fire plate).

It is suitable for the building material, furniture, table surface, door window, decorative bar and other related factories’ using. It can make complex shape products’ surface get perfect coating.
